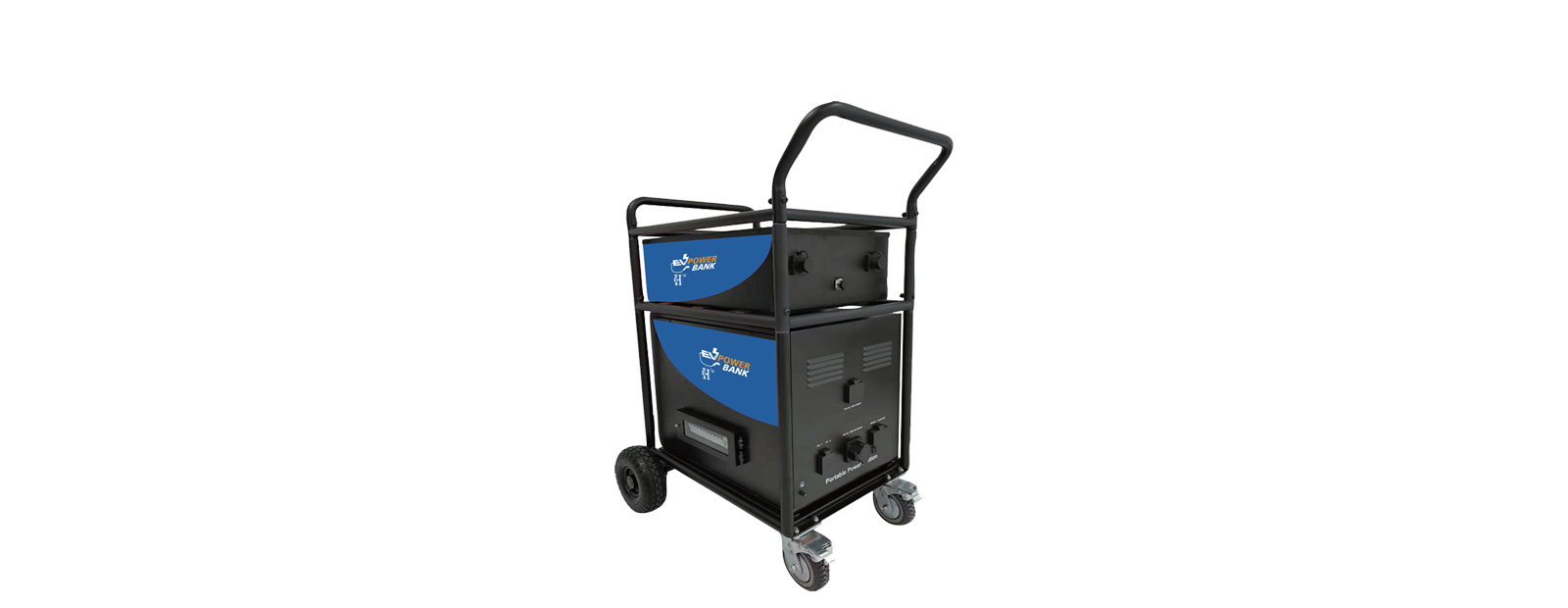

5000W,10240WH
5000W,10240WH
Long Operation and Life Time Strict Quality Control Multiple Use Occasions;Multiple Compatible Devices Pure Sine Wave; Reliable Output

User manual

Product video

Consultation

01
Product Introduction
5000W,10240WH
  • One extended battery is 5120Wh
    One extended battery is 5120Wh
  • Add up to 6 extended batteries with a total storage capacity of 30720Wh
    Add up to 6 extended batteries with a total storage capacity of 30720Wh
  • Add batteries or connect the entire unit together to expand the power system
    Add batteries or connect the entire unit together to expand the power system
  • Combining an expanded battery: total battery capacity 10240Wh
    Combining an expanded battery: total battery capacity 10240Wh
02
Parameter Introduction

Model EE5000-10240WH-1BK
Color Black
Battery Capacity 10240Wh
Rated Power 5000W
Peak Power 10000W
Input Wall Charger 1800W
Solar Panel   Max 4500W(120-450V 22A)
Output AC 4 socket, Universal Plug 10A*3 L6-30R*1
DC 2 * 5521 , 12V 10A            1 * cigarette lighter,  12V 10A
USB-A 4*18W  :   5V3A 9V2A 12V1.5A
Type-C 100W: 5V3A  9V3A  12V3A  15V3A  20V5A
100W: 5V3A  9V3A  12V3A  15V3A  20V5A
Accessory Power cord 1*48cm,  Car charging wire 1*131cm, Anderson Port *1, Hexagon Wrench *1
Size(mm) L856 x W710x H1105
Net weight 165 KGS (363.8 LBS)


×
