ES10000-20KWH

User manual

Product video

Consultation

01

Product Introduction

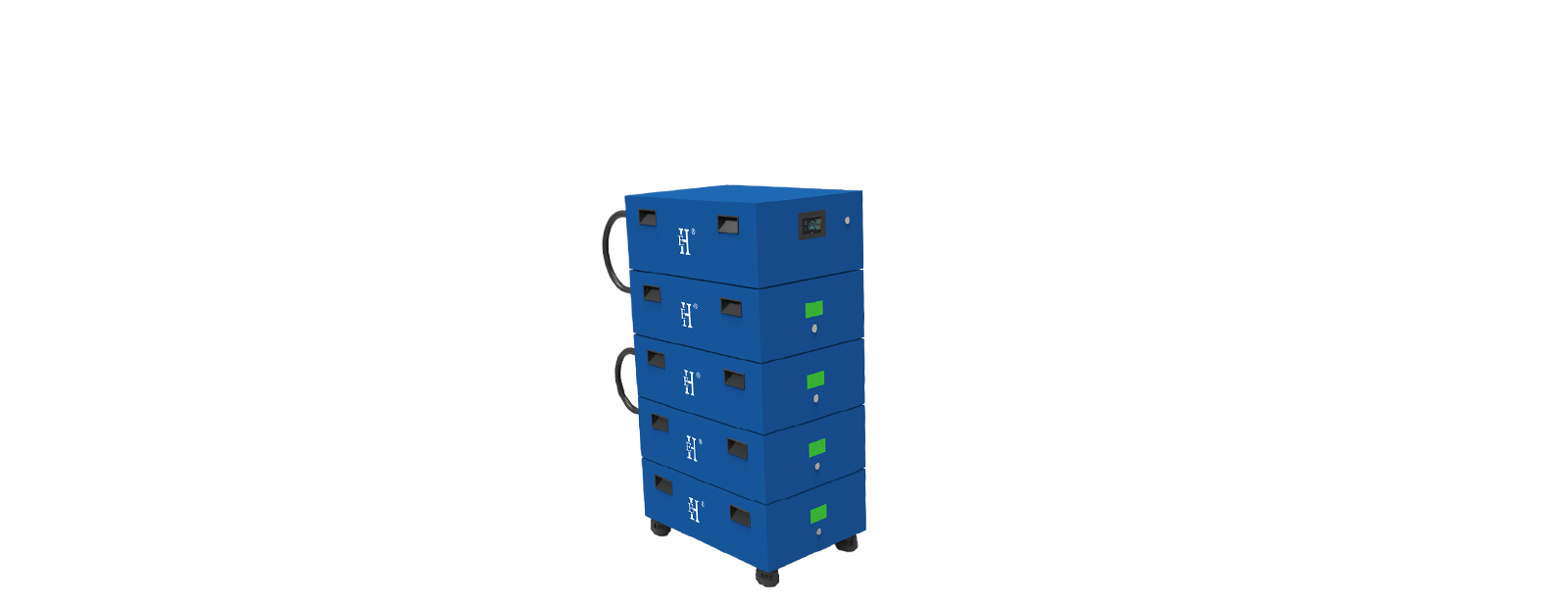

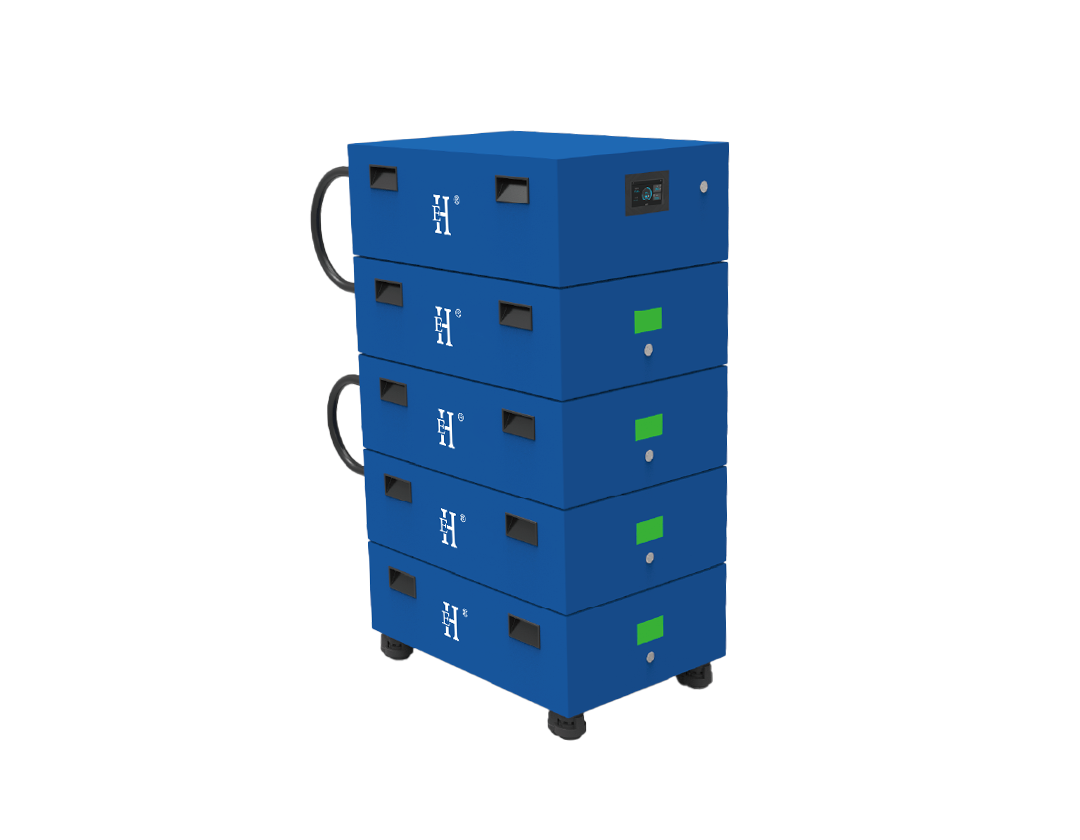

ES10000-20KWH

02

Parameter Introduction

Model	ES10000-20KWH-1BL
Color	BLUE
Rated Power	10KW
Peak Power	20KW
Motor Load	6HP
Battery Parameters	LiFePO4 51.2V 100AH*4 20.48KWh
Grid Connection	No
Input	PV Charging	120-450V 20A Two ways; Support MPPT 9KW in maximum
	Mains Charging	10-40V 10A 400W220-240V 50HZ Max4400W
AC Output	220V 50Hz
UPS	10ms
Charging Time	PV Charging About 3H(9000W) / Mains Charging About 5H(4400W)
Operating temperature	-10-40℃
Operating humidity(RH)	≤80%
Size(mm)	L710W480H1300
Weight	260 KGS (573.2LBS)

×
