EV-90A-100D-R | power station | CEA ELECTRIC CO.,LTD

Products Portable Power Station EV-90A-100D-R

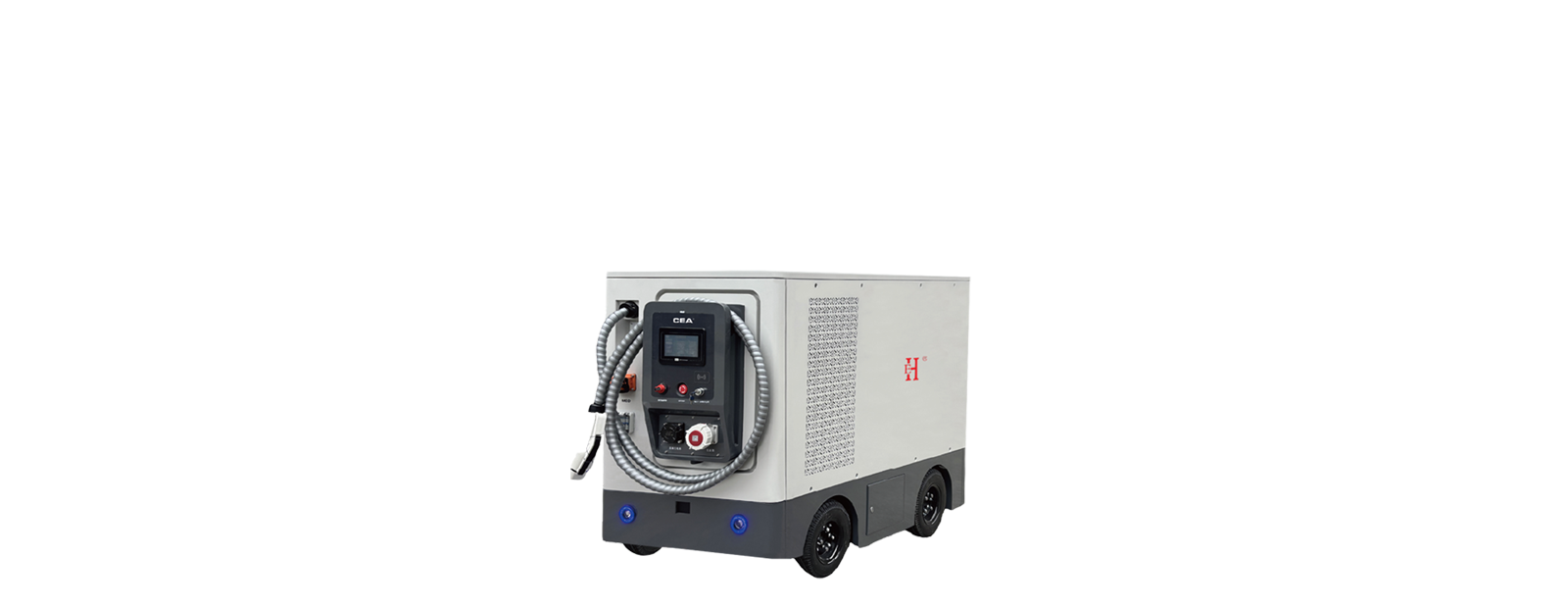

EV-90A-100D-R

MOVABLE CHARGING ;RESCUE CHARGING; DC FAST CHARGING ;CAR CHARGING

User manual

Product video

Consultation

Product Introduction

MOVABLE CHARGING
RESCUE CHARGING
DC FAST CHARGING
CAR CHARGING

Parameter Introduction

Product name

EV-90A-100D-R

Charging voltage

DC CHARGER/AC380V

Charging standard

GB/T(American/European/Japanese Standard）

Type of Battery

LiFePO4

Nominal capacity

100KWh

Charge rate

0.5C

Discharge rate

Battery voltage

614.4V

Depth of discharge

80%

Charge Cycles

5000

Cell type

LiFePO4

Pack voltage

614.4V

Rated voltage

3.2V

Rated frequency

105A

Cooling method

LIQUID COOLANT

IP level

IP54

Isolation method

Direct Detection

Rated Power

100 KW

Output Voltage

DC200V-1000V

Output Current

0-200A

Charging mode

90KW DC Fast Charging

Safety Protections

Overvoltage, Overcurrent, Low-voltage, ESD, Lighting, Overcharge, Overload, Fire, Overheat, Waterproof, Leakage and Chip Protection

Payment method

OCPP

Networking method

4G Module

Networking protocol

OCPP Network

Charging GUN

GB/T(American/European/Japanese Standard）

Cable Length

5 Meters(Customizable)

HMI

7-inch touch screen (charging station)

Language

Chinese (Customizable)

Dimension L*W*H/mm

2035*920*1491

Weight/kG

≈1450KG

Operating temperature/°C

-10°C-60°C

Altitude/m

2000m

Noise/dB

≤60dB

Relative humidity/RH

5%～95% RH, Non-condensing

Certificate
