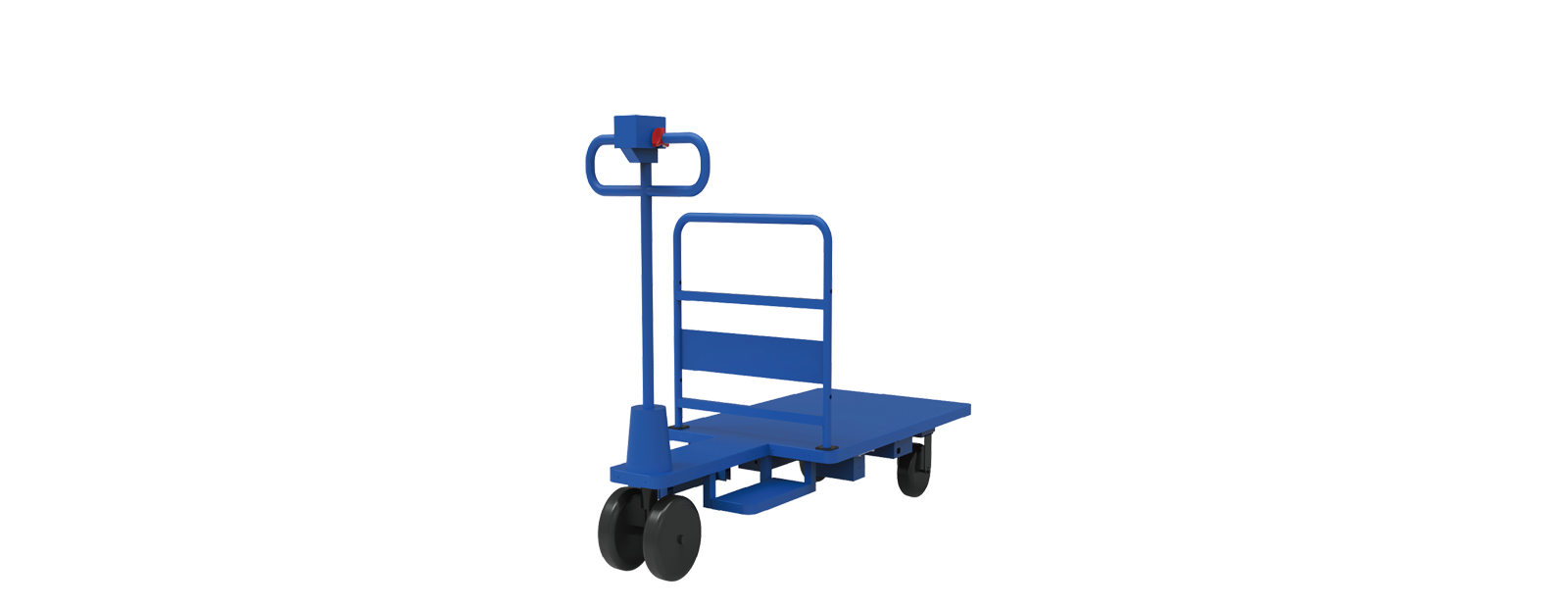

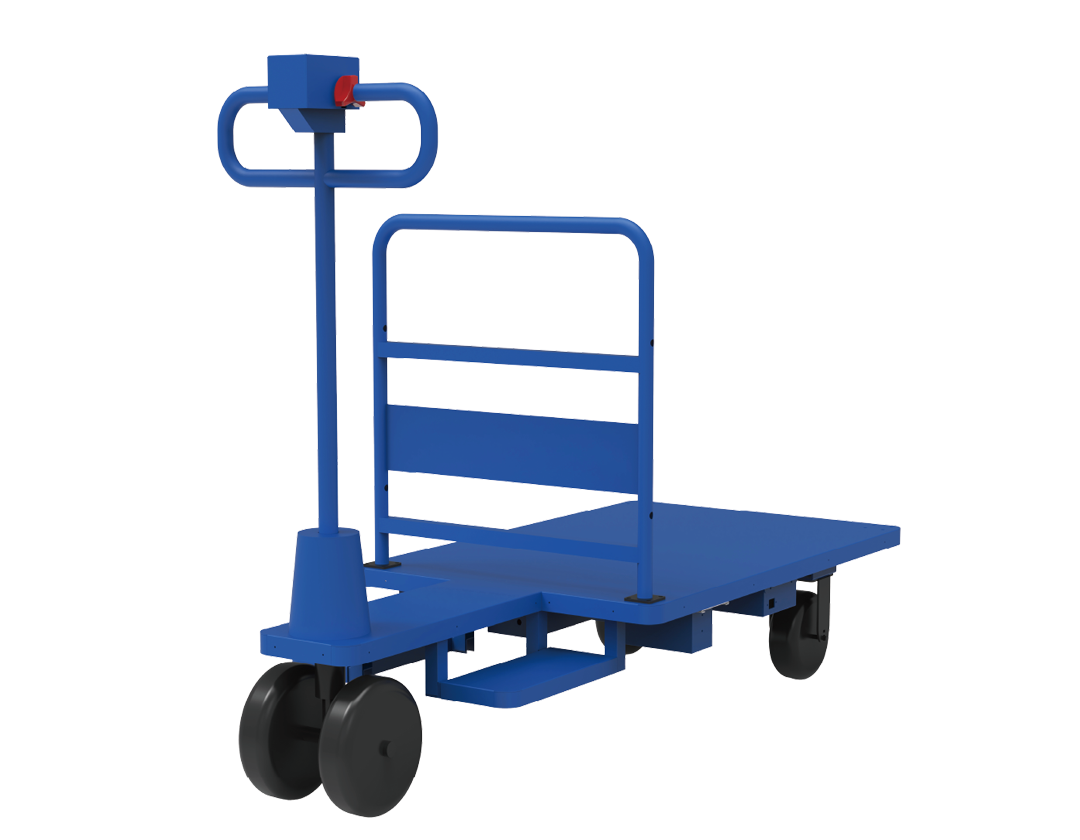

The EH-TS-691A series is a high-performance electric flatbed cart designed for industrial handling. Quiet and easy to operate, it is the perfect alternative to traditional manual carts. Whether in warehouses, factories, or malls, it effortlessly moves heavy loads, significantly reducing labor intensity and making transport tasks safer and more efficient.
|
Product parameter
|
Load Capacity 500KG
|
|
Model
|
EH-TS-691A
|
EH-TS-F1-691A
|
|
Load Capacity
|
500KG
|
|
Charging Method
|
Wall Charge AC100-240V 50/60Hz 294W
|
|
Battery Capacity
|
LiFePO4 25.6V 691WH
|
|
Motor Power
|
8 inch 24V 192W 110rpm Brushless Motor
|
|
Drive Method
|
Dual-motor Rear-wheel Drive
|
|
Travel Speed
|
0-3.5Km/H
|
|
Climbing Angle
|
10°
|
|
Travel Direction
|
Drive/Reverse
|
|
Control Method
|
Push Switch
|
|
Starting Method
|
Key Switch
|
|
Braking Method
|
Electric Brakes/Emergency Stop
|
|
Status Indicator
|
Support
|
|
Power Level Display
|
Support
|
|
Product Dimension(mm) L*W*H
|
1880*800*1300
|
|
Package Dimension(mm) L*W*H
|
2000*920*860
|
|
N.W.(kg)
|
94Kg
|
114Kg
|
|
G.W.(kg)
|
120Kg
|
140Kg
|
