6.5KW,10.5KWH | | CEA ELECTRIC CO.,LTD

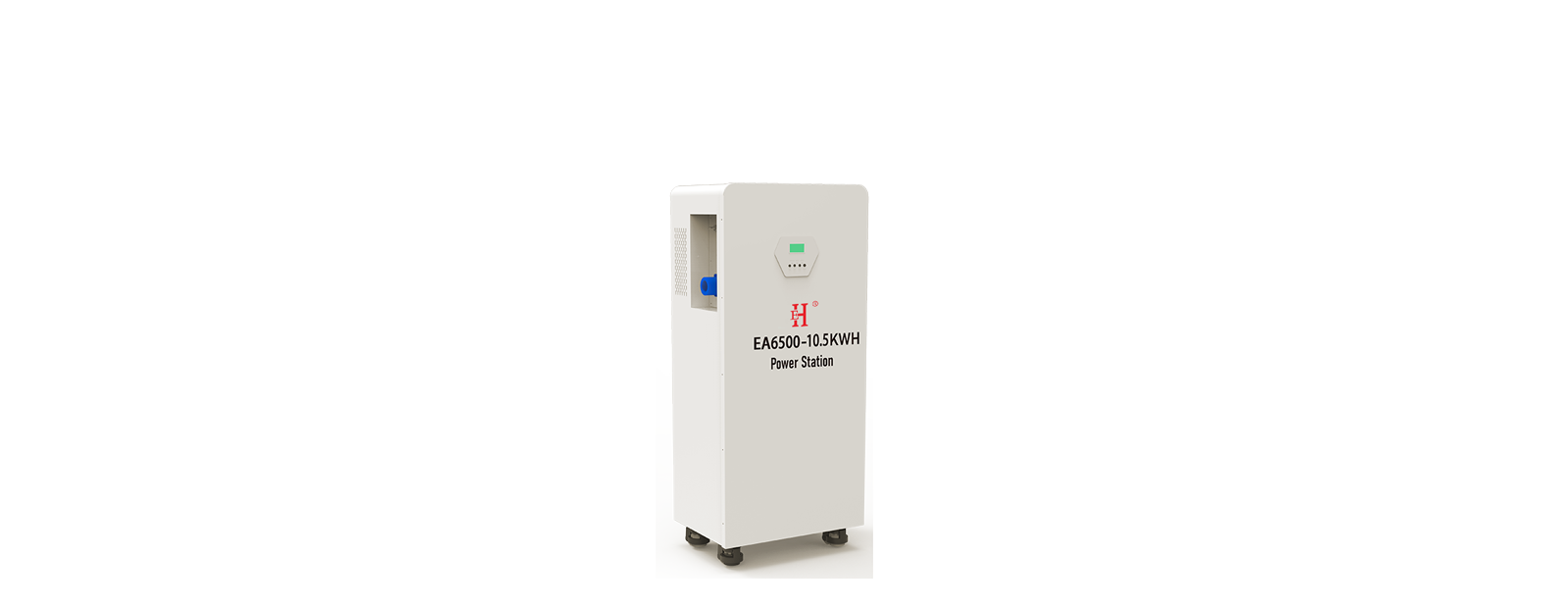

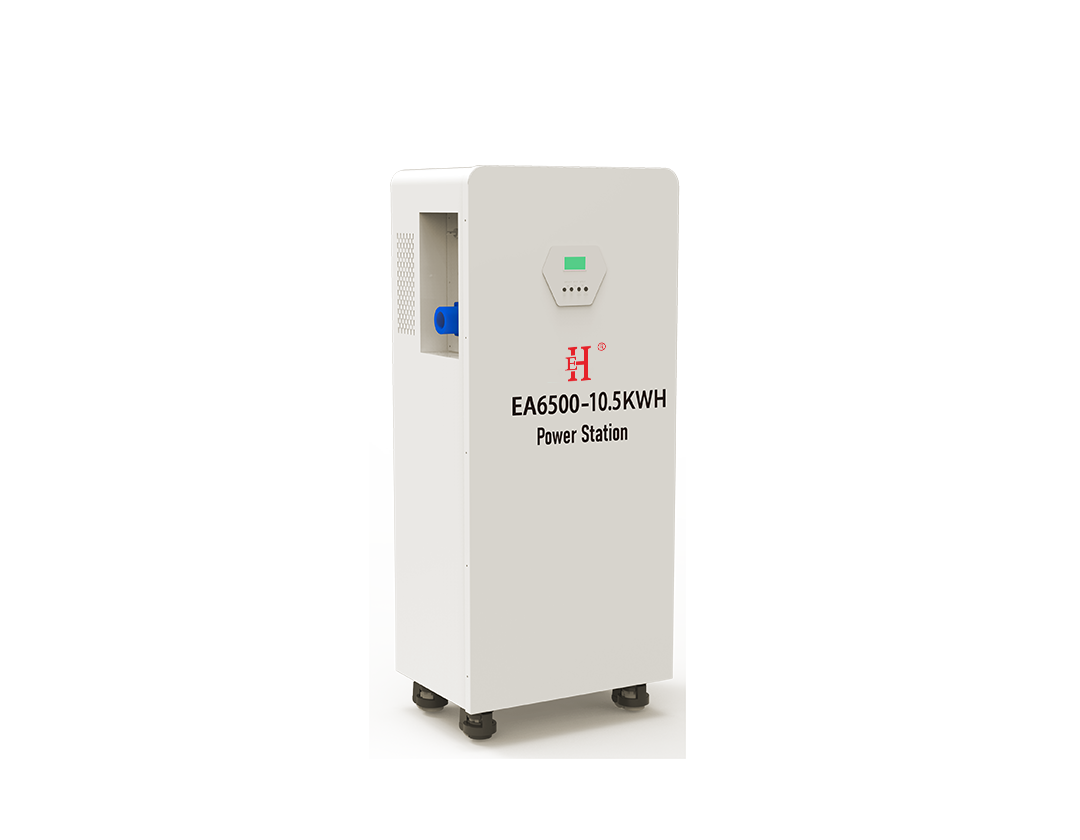

6.5KW,10.5KWH

This series supports 120V/240V split-phase output, making it ideal for high-power US appliances like dryers and air conditioners. From home backup to outdoor work and RV trips, it ensures all your power requirements are covered.

User manual

Product video

Consultation

Product Introduction

9kW High-Power PV Input
10.5kWh Essential Home Backup
120V Pure Sine Wave
6500W Robust Output

Parameter Introduction

EA Series Power Station (US Standard)
Model		EA6500-10.5KWH
Rated Power		Single Phase 6.5KW
Battery Type		LiFePo4
Battery Capacity		10.5KWH
Single Cell Voltage(V)		3.2
Single Cell Amp (Ah)		206Ah
PACK Serial-Parallel Numbers		16s1p
Charging Power	Mains	AC 120V 60Hz 2200W
	PV	80-300V 22A 4500W*2 9KW
AC Output		120V 6500W
Ambient Temperature Range		-10~40℃
UPS Function		Support
Remote monitoring (optional)		WIFI
Size[mm]LWH		L700 x W380 x H850
Net Weight		130.0KGS
