12KWH-23.5KWH | | CEA ELECTRIC CO.,LTD

12KWH-23.5KWH

This series supports 120V/240V split-phase output, making it ideal for high-power US appliances like dryers and air conditioners. From home backup to outdoor work and RV trips, it ensures all your power requirements are covered.

User manual

Product video

Consultation

Product Introduction

11kW High-Power PV Input
23.5kWh Massive Energy for Full-Scale Backup
120V/240V Pro Split Phase Output
12kW Industrial-Grade Power Output

Parameter Introduction

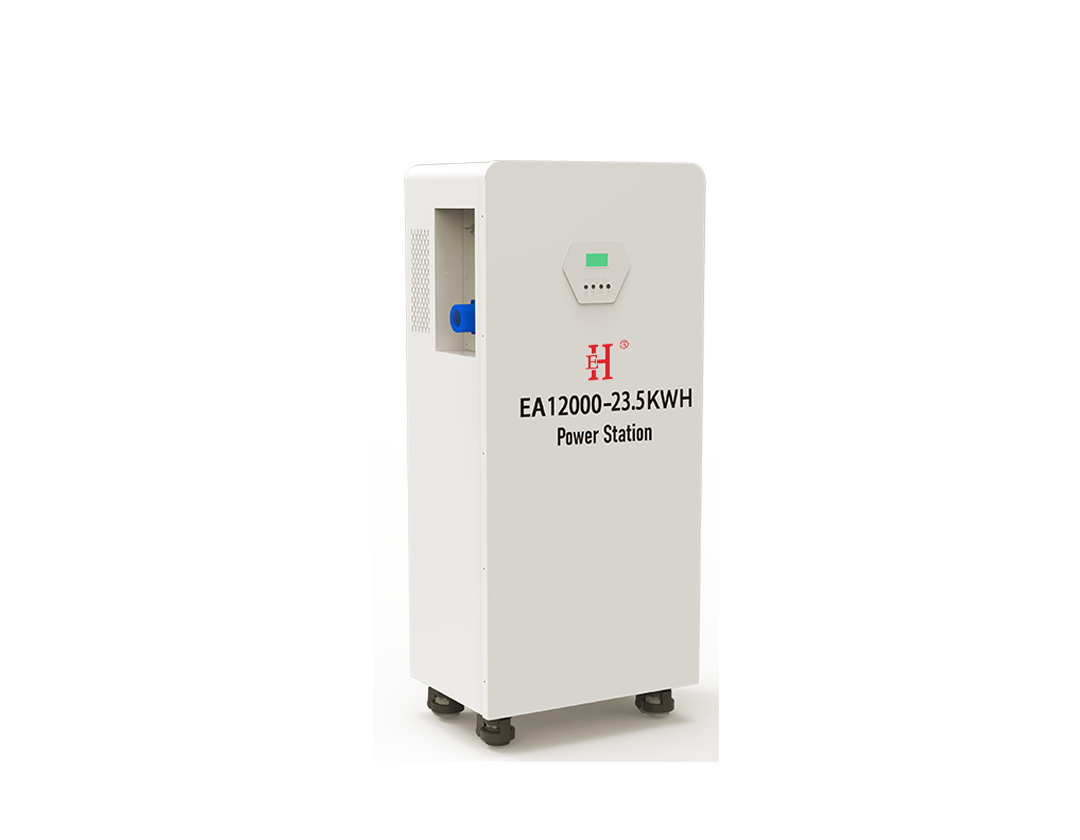

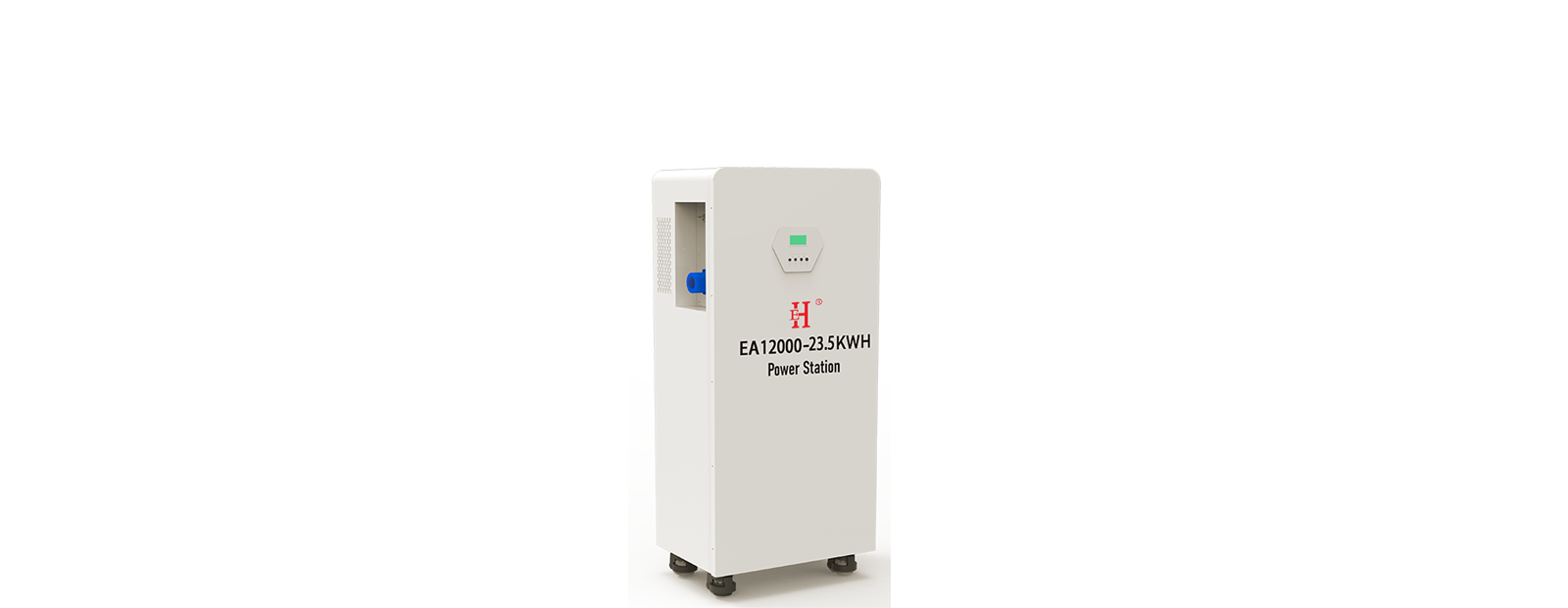

EA Series Power Station (US Standard)
Model		EA12000-23.5KWH
Rated Power		Split Phase 12KW Single Phase 7.2KW
Battery Type		LiFePo4
Battery Capacity		23.5KWH
Single Cell Voltage(V)		3.2
Single Cell Amp (Ah)		230Ah
PACK Serial-Parallel Numbers		16s2p
Charging Power	Mains	AC 120V 60Hz 2200W
	PV	90-450V 22A 5500W*2 11KW
AC Output		(L1-L2 240V 12KW) / (L1-N/L2-N 120V 7.2KW)
Ambient Temperature Range		-10~40℃
UPS Function		Support
Remote monitoring (optional)		WIFI
Size[mm]LWH		L700 x W380 x H1300
Net Weight		190.0KGS
