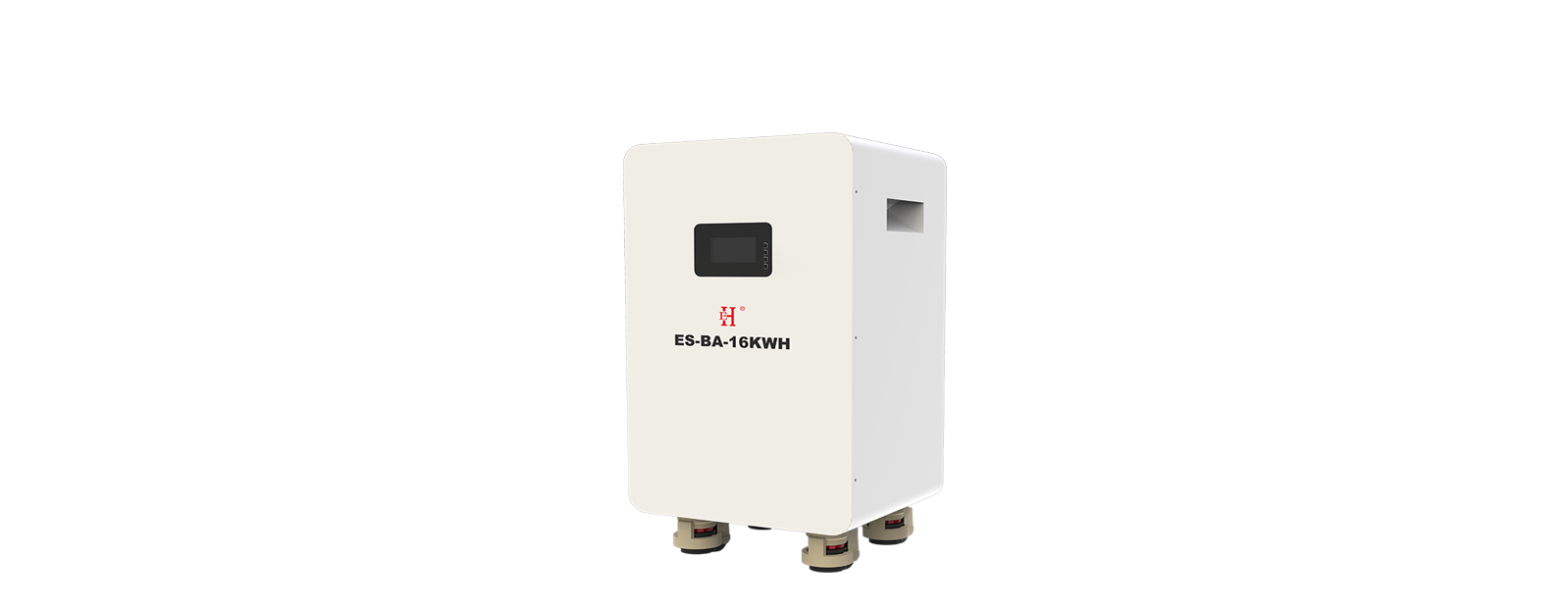

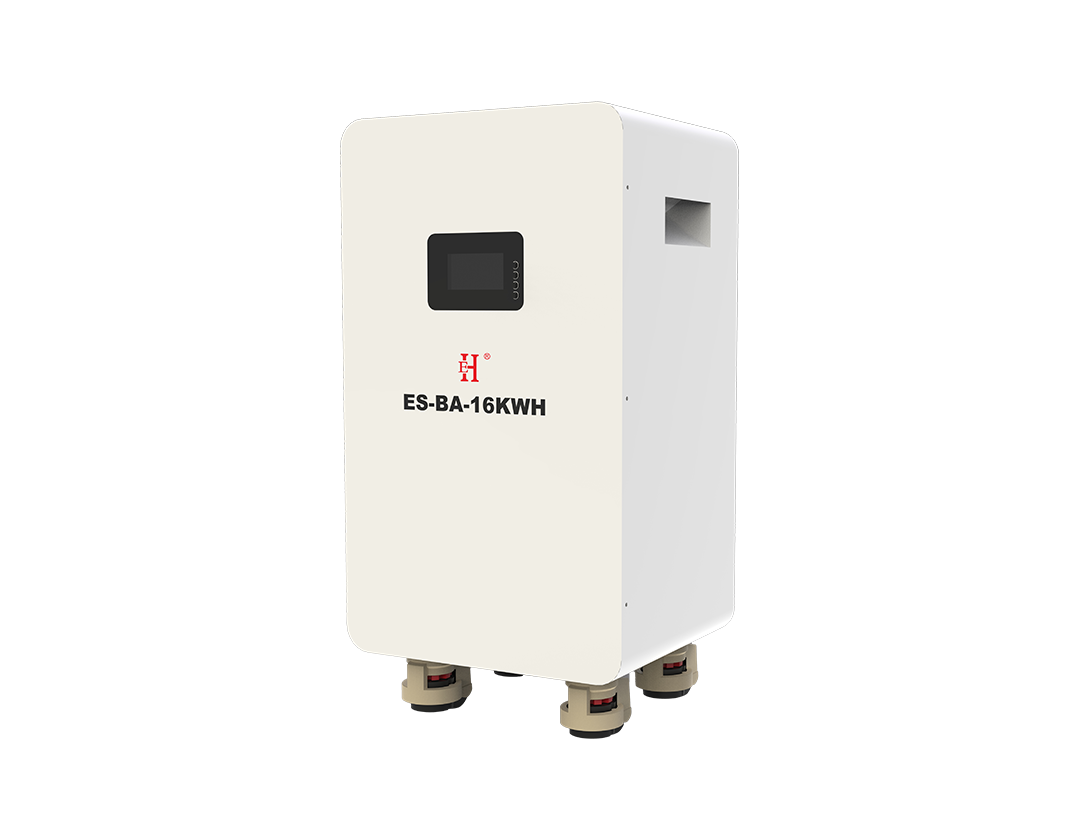

BA,16KWH

Intro (English): The ES-BA series acts as a giant "power bank" for your home or business. It stores green energy quietly and cleanly, providing total power independence when paired with solar panels. Highlights: Massive capacity (up to 23.5kWh), smart WIFI monitoring, explosion-proof safety, and expandable power through parallel connection.

User manual

Product video

Consultation

Product Introduction

Smart Phone Monitoring
Safe & Reliable
16kWh Large Storage
Fast Charging

Parameter Introduction

Product parameter	16KWH
Model	ES-BA-16KWH
Type	Mobile
Battery Type	LiFePo4
Color	Customized
Battery Capacity	16KWH
Single Cell Voltage(V)	3.2
Single Cell Amp (Ah)	314Ah
PACK Serial-Parallel Numbers	16s1p
Rated Voltage	51.2V
Max Charge Current	150A
Max Discharge Current	200A
Support Paralleled Battery Expansion	Max 16 pcs
Ambient Temperature Range	-10~40℃
Storage Temperature	0-30℃
Storage Humidity	0-95%
Bluetooth/WIFI APP Monitor	Support
Communication Method	CAN/485
Protection	Over Charge/Over Discharge/Over Current/Short-circuit/Over Temperature
IP Rate	IP20
Size[mm]LWH	L430 x W300 x H930
Net Weight	110.0KGS
