12000KW

ES Series features safe, silent LiFePo4 cells as a green alternative to diesel generators. With robust output and massive capacity, it easily powers home appliances like fridges, rice cookers, and ACs, ensuring stable energy in any environment.

User manual

Product video

Consultation

Product Introduction

ES Series features safe, silent LiFePo4 cells as a green alternative to diesel generators.
With robust output and massive capacity, it easily powers home appliances
18kW PV input
12000W Three phase

Parameter Introduction

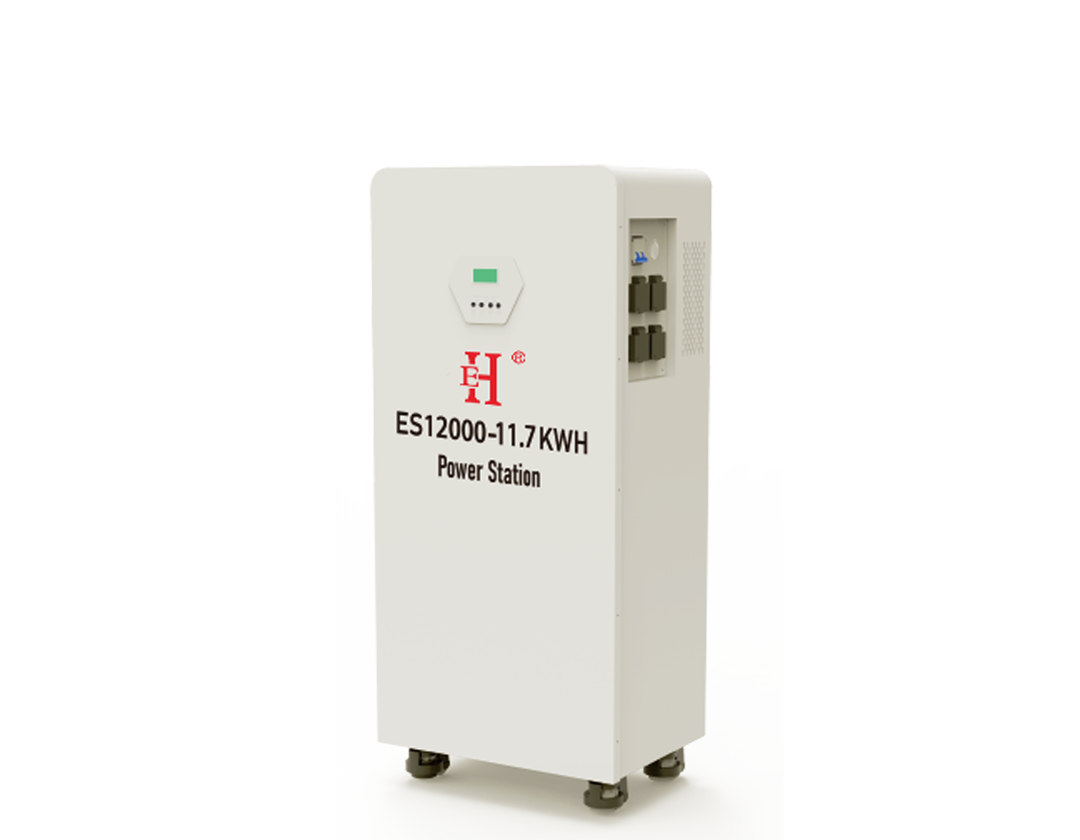

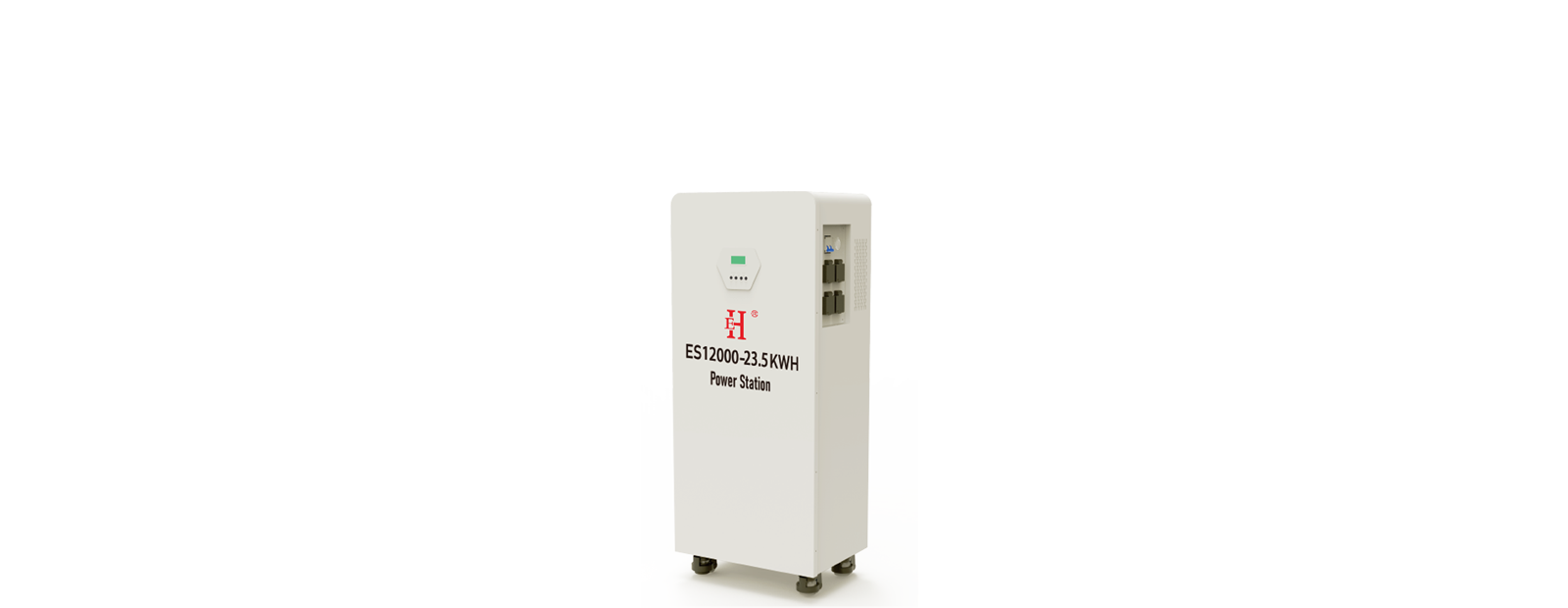

ES Series Three Phase Power Station
Model		ES12000-11.7KWH	ES12000-16KWH	ES12000-23.5KWH
Rated Power		12KW	12KW	12KW
Battery Type		LiFePo4
Battery Capacity		11.7KWH	16KWH	23.5KWH
Single Cell Voltage(V)		3.2V
Single Cell Amp (Ah)		230Ah	314Ah	230Ah
PACK Serial-Parallel Numbers		16s1p	16s1p	16s2p
Charging Power	Mains	AC 230V 50Hz 3300W
	PV	200-650V 22A 9000W*2 18KW
AC Output		Single phase 230V/Three phase 400V 50Hz 12000W
Ambient Temperature Range		-10~40℃
UPS Function		Support
Remote monitoring (optional)		WIFI
Size[mm]LWH		L700 x W380 x H1100	L700 x W380 x H1200	L700 x W380 x H1300
Net Weight		150.0KGS	170.0KGS	190.0KGS
