Product parameter |
23.5KWH |
|

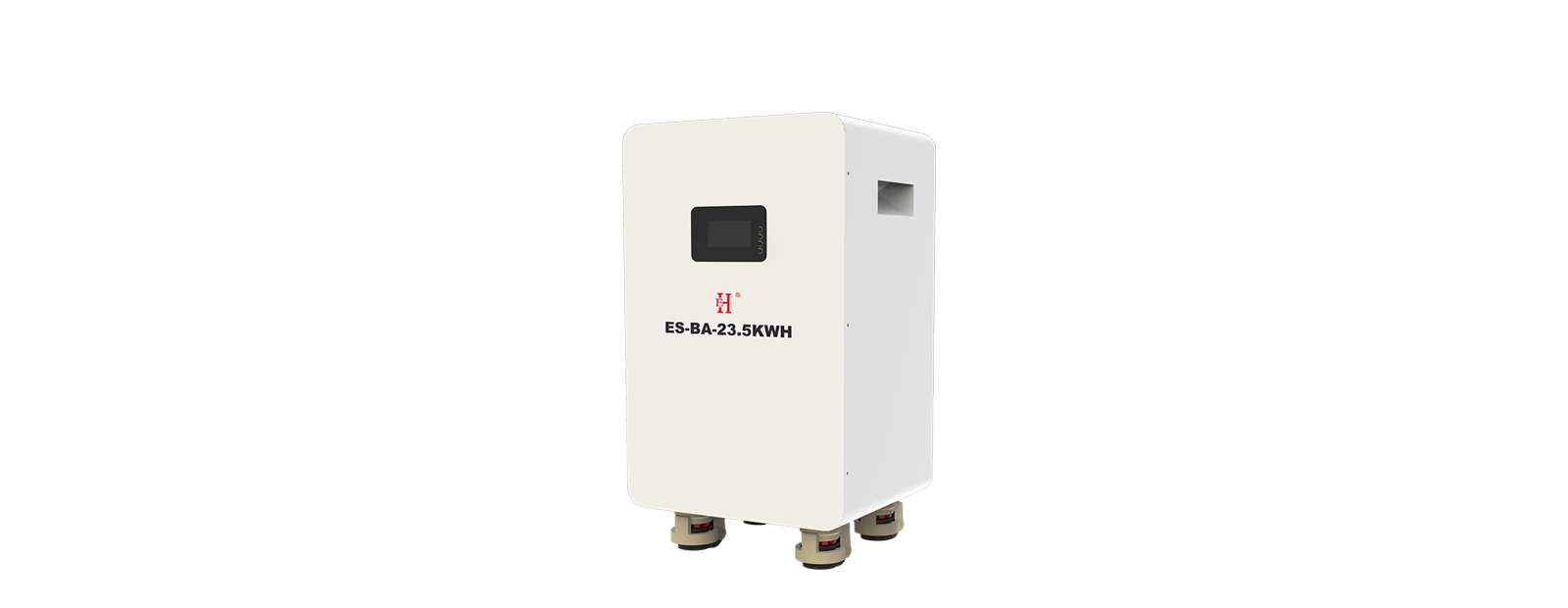

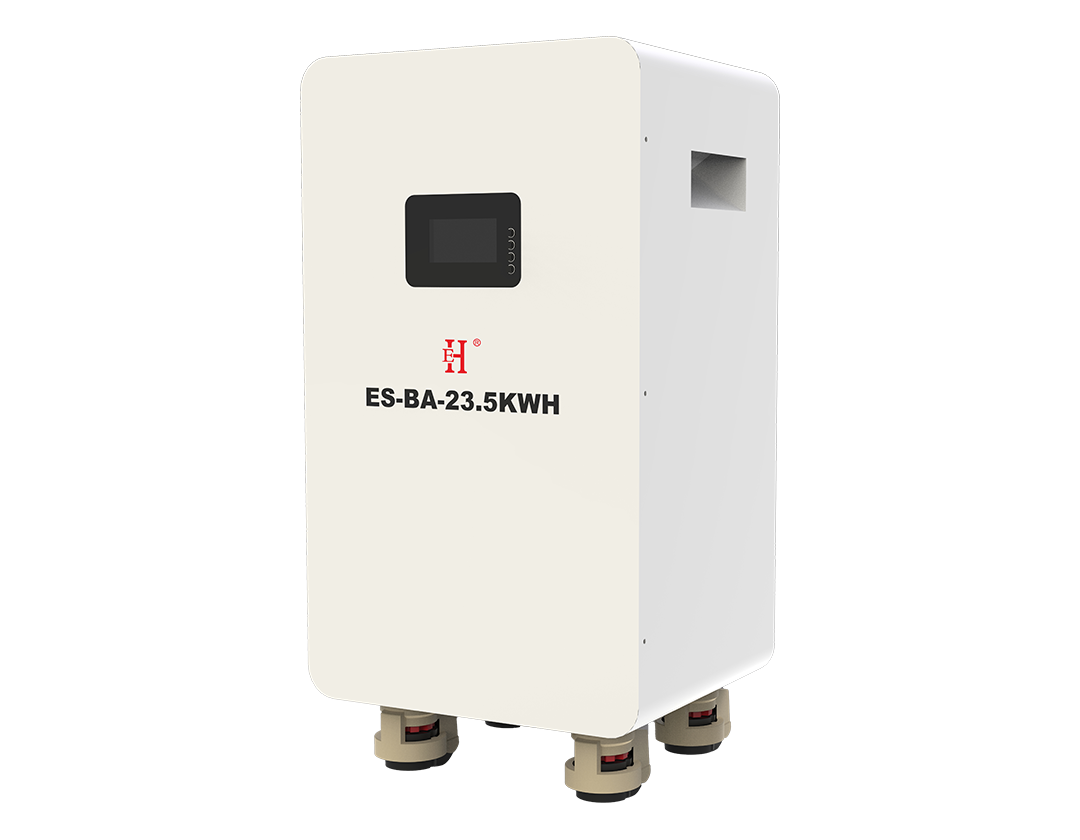

Model |
ES-BA-23.5KWH |
|
Type |
Mobile |
|
Battery Type |
LiFePo4 |
|
Color |
Customized |
|
Battery Capacity |
23.5KWH |
|
Single Cell Voltage(V) |
3.2 |
|
Single Cell Amp (Ah) |
230Ah |
|
PACK Serial-Parallel Numbers |
16s2p |
|
Rated Voltage |
51.2V |
|
Max Charge Current |
250A |
|
Max Discharge Current |
250A |
|
Support Paralleled Battery Expansion |
Max 16 pcs |
|
Ambient Temperature Range |
-10~40℃ |
|
Storage Temperature |
0-30℃ |
|
Storage Humidity |
0-95% |
|
Bluetooth/WIFI APP Monitor |
Support |
|
Communication Method |
CAN/485 |
|
Protection |
Over Charge/Over Discharge/Over Current/Short-circuit/Over Temperature |
|
IP Rate |
IP20 |
|
Size[mm]L*W*H |
L643 x W300 x H1100 |
|
Net Weight |
180.0KGS |
