7.2KW,11.7KWH | | CEA ELECTRIC CO.,LTD

7.2KW,11.7KWH

This series supports 120V/240V split-phase output, making it ideal for high-power US appliances like dryers and air conditioners. From home backup to outdoor work and RV trips, it ensures all your power requirements are covered.

User manual

Product video

Consultation

Product Introduction

9kW High-Power PV Input
11.7kWh Extended Off-Grid Energy
120V/240V Split Phase
7.2kW Split Phase

Parameter Introduction

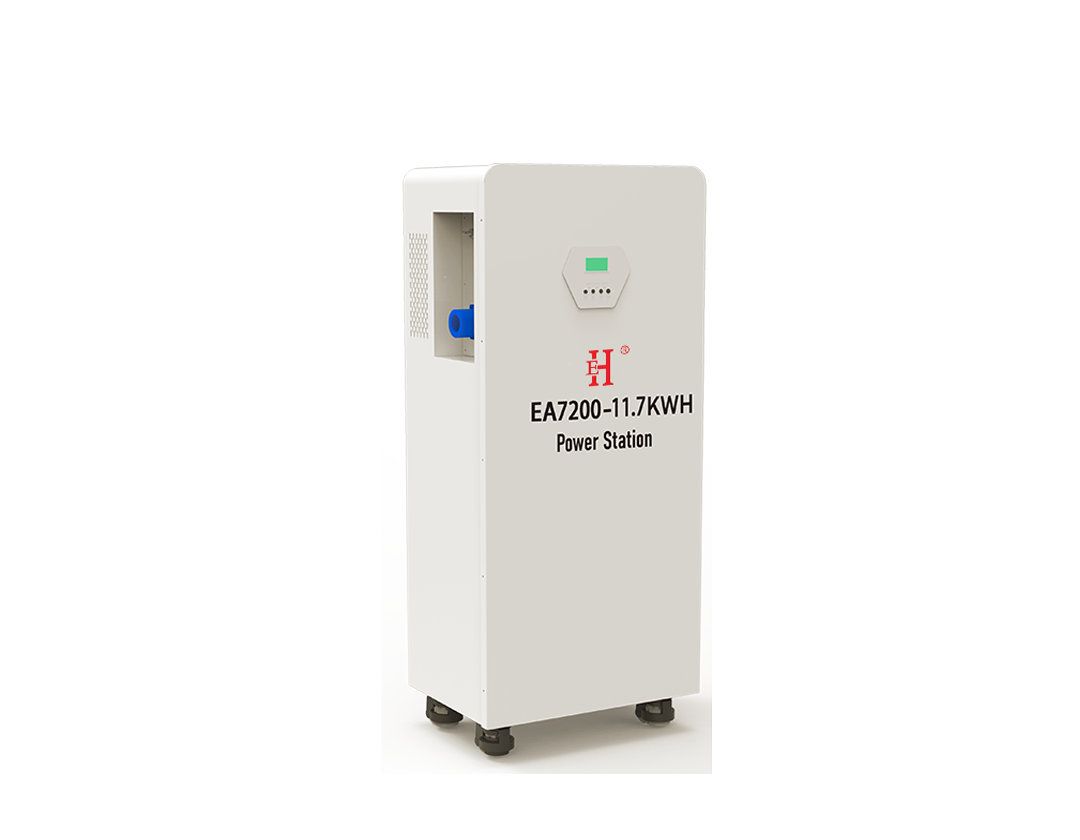

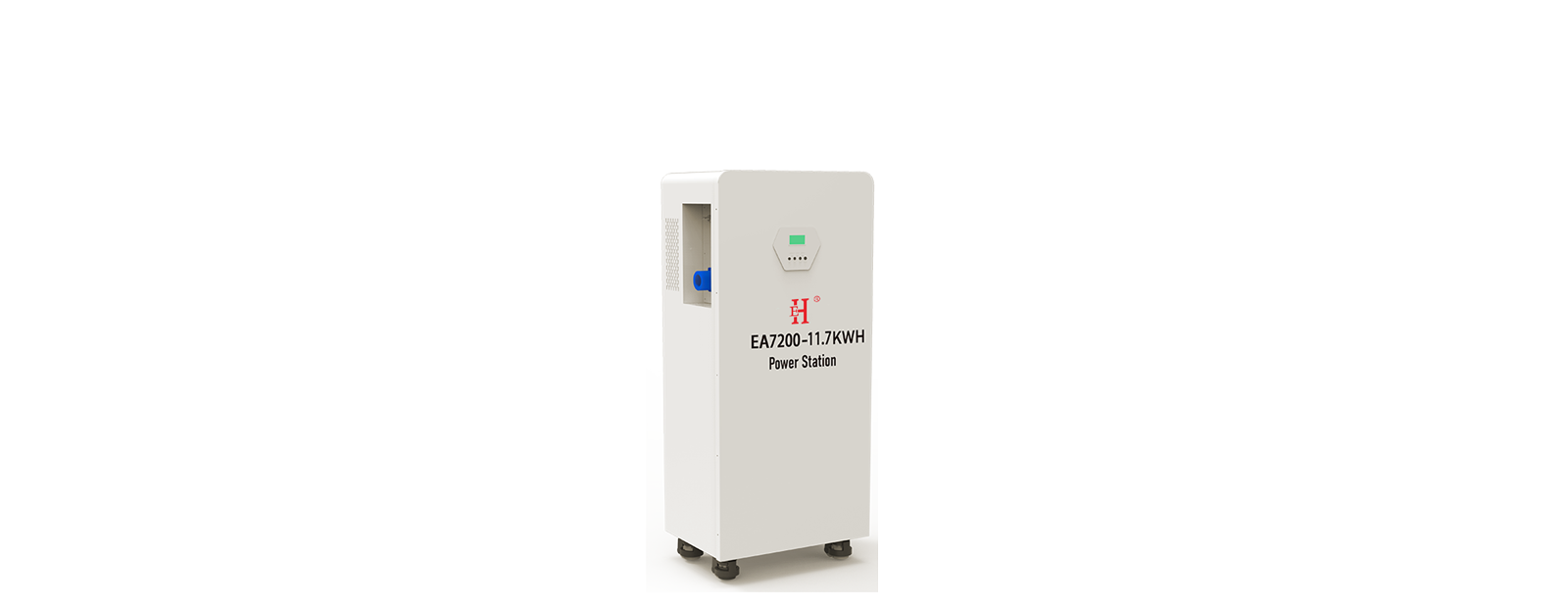

EA Series Power Station (US Standard)
Model		EA7200-11.7KWH
Rated Power		Split Phase 7.2KW Single Phase 6KW
Battery Type		LiFePo4
Battery Capacity		11.7KWH
Single Cell Voltage(V)		3.2
Single Cell Amp (Ah)		230Ah
PACK Serial-Parallel Numbers		16s1p
Charging Power	Mains	AC 120V 60Hz 2200W
	PV	90-450V 16A 4500W*2 9KW
AC Output		(L1-L2 240V 7.2KW) / (L1-N/L2-N 120V 6KW)
Ambient Temperature Range		-10~40℃
UPS Function		Support
Remote monitoring (optional)		WIFI
Size[mm]LWH		L700 x W380 x H950
Net Weight		150.0KGS
