11KW,23.5KWH | | CEA ELECTRIC CO.,LTD

11KW,23.5KWH

The ES series mobile energy storage uses LiFePO4 cells, offering safe and noise-free green energy as an alternative to diesel generators. With powerful output and massive capacity, it easily drives whole-home appliances such as refrigerators, rice cookers, and air conditioners, ensuring stable power supply in any environment.

User manual

Product video

Consultation

Product Introduction

11kW PV Input
23.5kWh Capacity
230V Single Phase Output
11000W Rated Power

Parameter Introduction

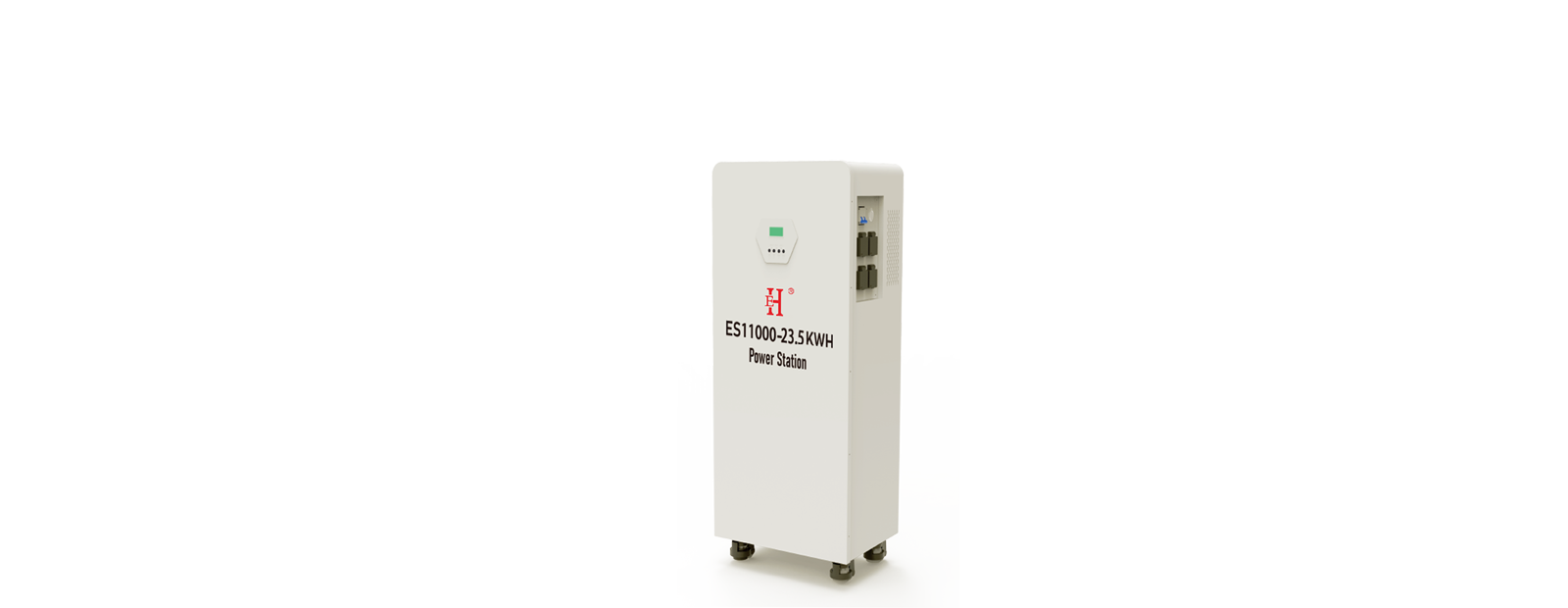

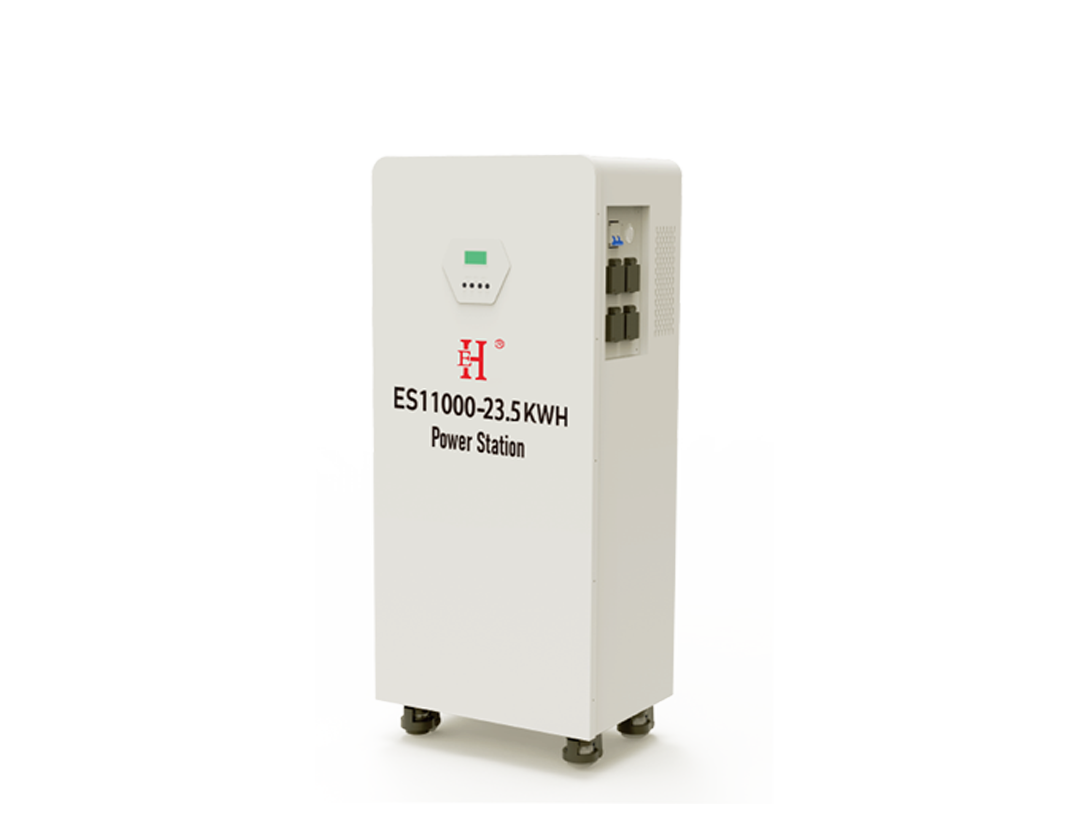

ES Series Power Station
Model		ES11000-23.5KWH
Rated Power		11KW
Battery Type		LiFePo4
Battery Capacity		23.5KWH
Single Cell Voltage(V)		3.2V
Single Cell Amp (Ah)		230Ah
PACK Serial-Parallel Numbers		16s2p
Charging Power	Mains	AC 230V 50Hz 3300W
	PV	90-500V 27A 5500W*2 11KW
AC Output		230V 50Hz 11000W
Ambient Temperature Range		-10~40℃
UPS Function		Support
Remote monitoring (optional)		WIFI
Size[mm]LWH		L700 x W380 x H1300
Net Weight		190.0KGS
